16 Single Shaft Unipolar Stepper Motor,1.8°Step,8N·cm Torque,0.5A Current,20mm Body,6_Wire

Precision NEMA 16 Stepper Motor–1.8 Step Angle,8N·cm Torque,0.5A,20mm Body,6 Wires

Overview

This NEMA 16 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 8N·cm(11.33oz.in)of holding torque at 0.5A rated current per phase.

With a body length of 20mm and a Round shaft design, this 6-wire Unipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs

Model Type:16HB08-0506S

Motor Type:Unipolar Stepper

Step Angle:1.8 per step

Rated Current/Phase:0.5A

Holding Torque:8N·cm(11.33oz.in)

Phase Resistance:14Ω

Inductance:6.4mH±20%(1KHz)

Insulation Class:B(130°C/266°F)

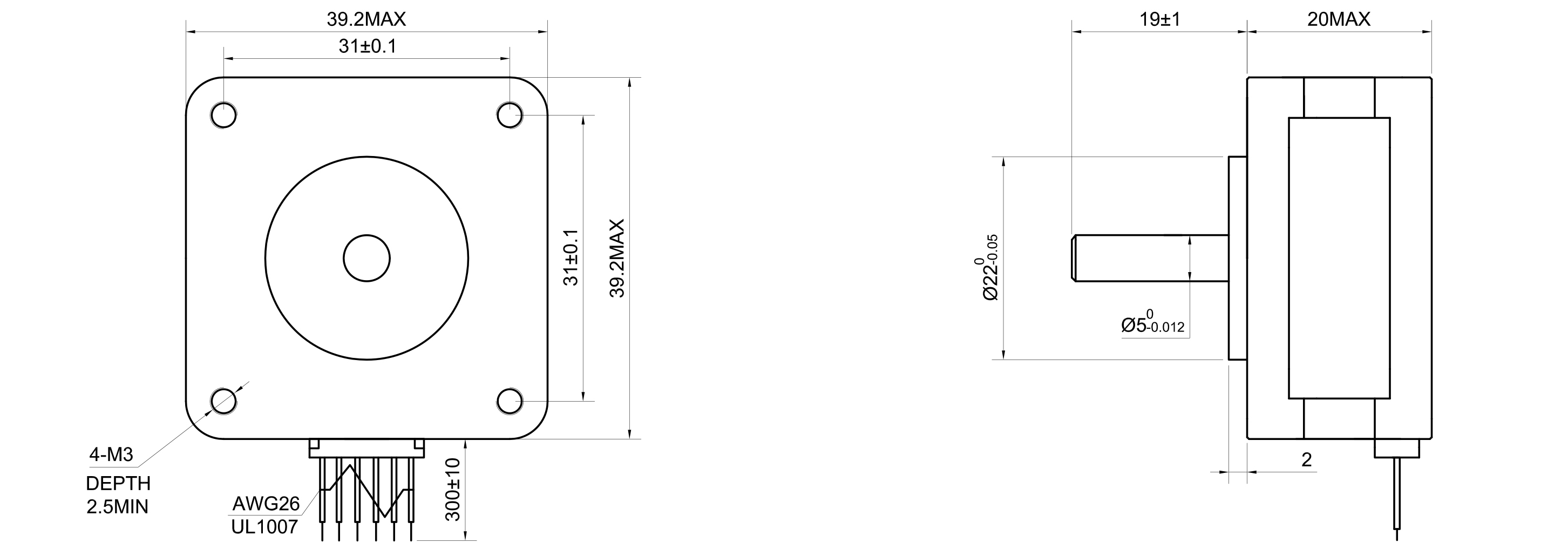

✅Mechanical Specs

Frame Size:39x39x20mm

Motor Length:20mm

Shaft Type:Round

Shaft Diameter:5mm

Shaft Length:19mm

Lead Wires:4

Lead Length:300mm

✅Ideal For

High-precision 3D printers

Compact CNC systems

Camera sliders & pan-tilt heads

Automated optical systems

Robotics with tight movement tolerances

✅Why Pick This Motor?

If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
