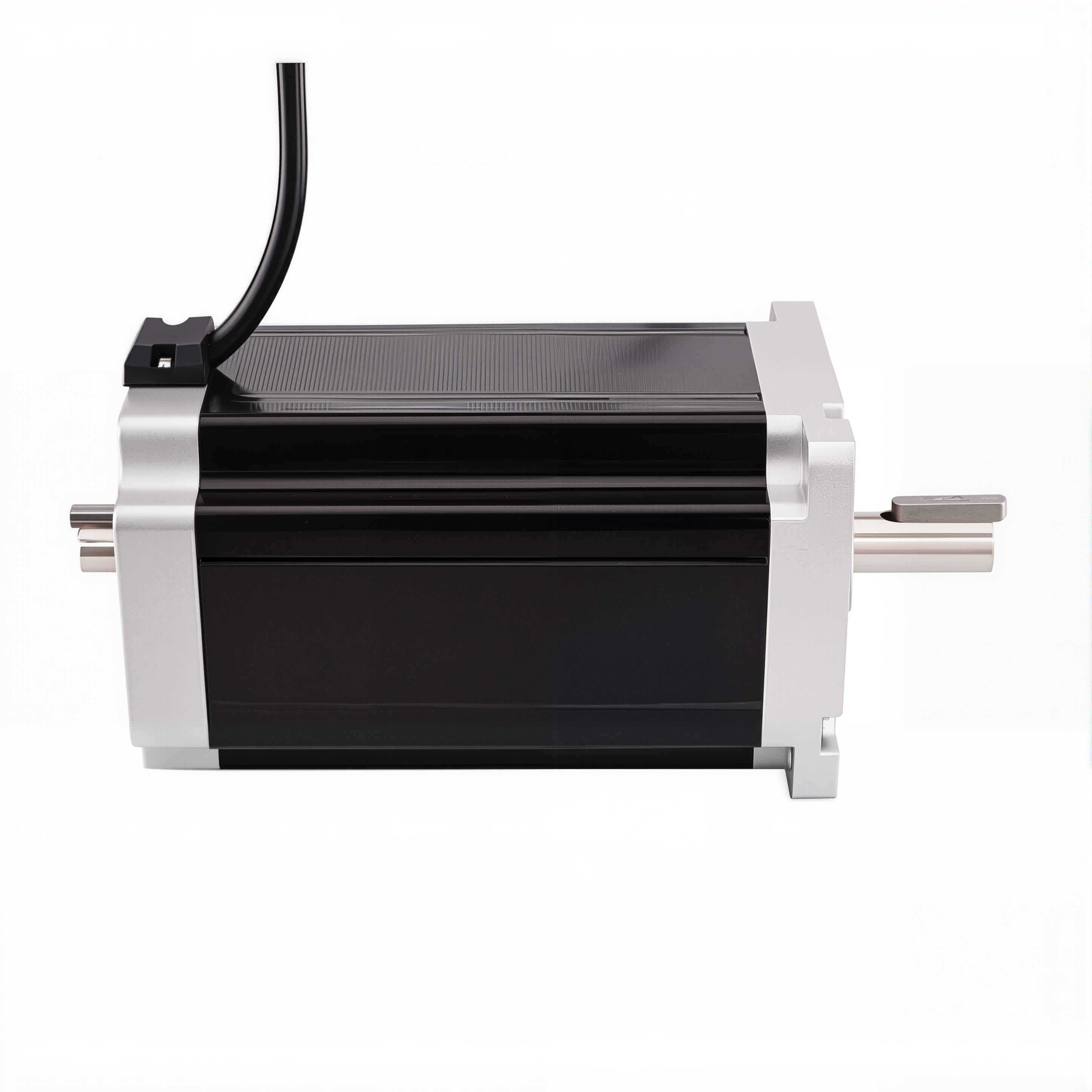

34 Dual Shaft Bipolar Stepper Motor,1.8°Step,1300N·cm Torque,5A Current,151.5mm Body,4-Wire

Precision NEMA 34 Stepper Motor–1.8 Step Angle,1300N·cm Torque,5A,151.5mm Body,4 Wires

Overview

This NEMA 34 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 1300N·cm(1841oz.in)of holding torque at 5A rated current per phase.

With a body length of 151.5mm and a Key-way shaft design, this 4-wire bipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs

Model Type:34HB59-5004D

Motor Type:Bipolar Stepper

Step Angle:1.8 per step

Rated Current/Phase:5A

Holding Torque:1300N·cm(1841oz.in)

Phase Resistance:1Ω

Inductance:11mH±20%(1KHz)

Insulation Class:B(130°C/266°F)

✅Mechanical Specs

Frame Size:86x86x151.5mm

Motor Length:151.5mm

Shaft Type:Key-way

Shaft Diameter:14mm

Shaft Length:37mm

Key-Way Length:25mm(if applicable)

Lead Wires:4

Lead Length:500mm

✅Ideal For

High-precision 3D printers

Compact CNC systems

Camera sliders & pan-tilt heads

Automated optical systems

Robotics with tight movement tolerances

✅Why Pick This Motor?

If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
