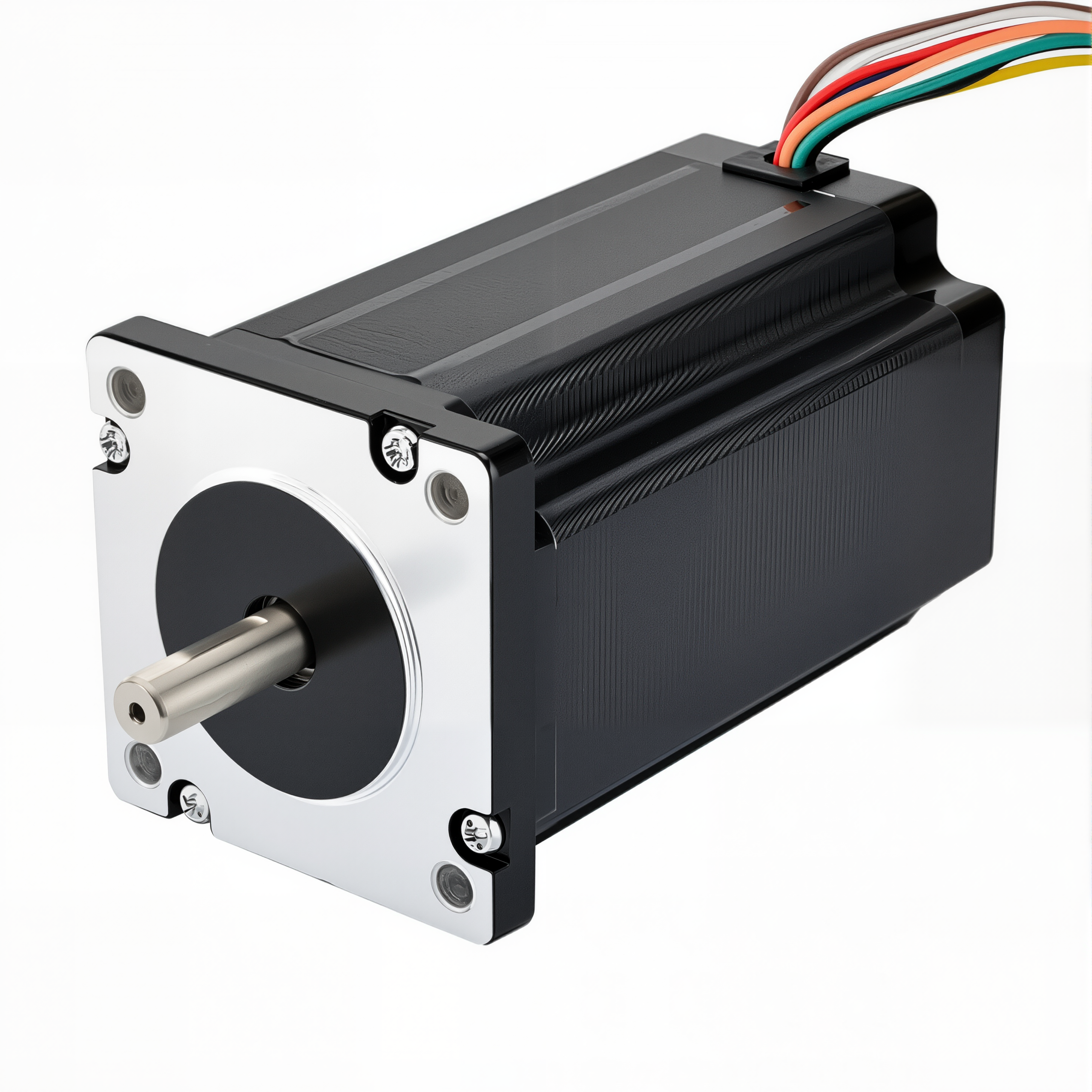

24 Dual Shaft Bipolar/Unipolar Stepper Motor,1.8°Step,400N·cm Torque,4.24A Current,100mm Body,8-Wire

Precision NEMA 24 Stepper Motor–1.8 Step Angle,3.4N·m Torque(Bipolar),2.48N·m Torque(Unipolar),4.24A,100mm Body,8 Wires

This NEMA 24 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 3.4N·m(481.48oz.in)of holding torque(Bipolar),2.48N·m(351.3oz.in)of holding torque(Unipolar)at 4.24A rated current per phase.

With a body length of 100mm and a D-cut shaft design, this 8-wire bipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs
Model Type:24HB39-3008D
Motor Type:Bipolar/Unipolar Stepper
Step Angle:1.8 per step
Rated Current/Phase(Bipolar Serial):2A
Rated Current/Phase(Bipolar Parallel):4A
Rated Current/Phase(Unipolar):2.8A
Holding Torque(Bipolar):3.4N·cm(481.48oz.in)
Holding Torque(Unipolar):2.48N·cm(351.3oz.in)
Phase Resistance(Bipolar Serial):2.8Ω
Phase Resistance(Bipolar Parallel):0.7Ω
Phase Resistance(Unipolar):1.4Ω
Inductance(Bipolar Serial):12.0mH±20%(1KHz)
Inductance(Bipolar Parallel):3.0mH±20%(1KHz)
Inductance(Unipolar):3.0mH±20%(1KHz)
Insulation Class:B(130°C/266°F)

✅Mechanical Specs
Frame Size:60x60mm
Motor Length:100mm
Shaft Type:D-cut
Shaft Diameter:8mm
Shaft Length:24mm
D-cut Length:20mm(if applicable)
Lead Wires:8
Lead Length:400mm

✅Ideal For
High-precision 3D printers
Compact CNC systems
Camera sliders & pan-tilt heads
Automated optical systems
Robotics with tight movement tolerances

✅Why Pick This Motor?
If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
