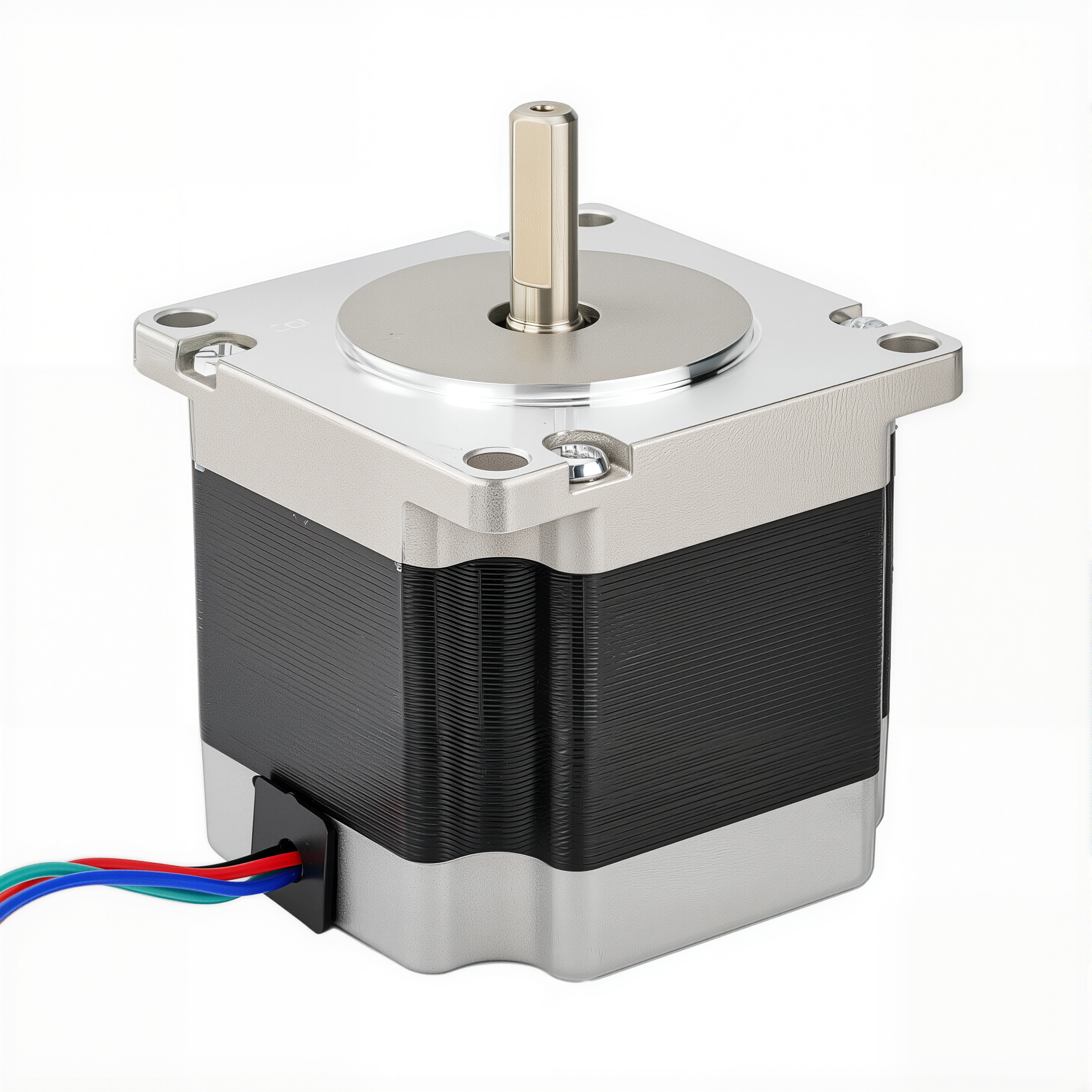

23 Single Shaft Bipolar Stepper Motor,0.9°Step,126N·cm Torque,2.8A Current,56mm Body,4-Wire

Precision NEMA 23 Stepper Motor–0.9 Step Angle,1.26N·m Torque,2.8A,56mm Body,4 Wires

This NEMA 23 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 0.9 step angle,it delivers 1.26N·m(178.4oz.in)of holding torque at 2.8A rated current per phase.

With a body length of 56mm and a D-cut shaft design, this 4-wire bipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs
Model Type:23H922-2804S
Motor Type:Bipolar Stepper
Step Angle:0.9 per step
Rated Current/Phase:2.8A
Holding Torque:1.26N·m(178.4oz.in)
Phase Resistance:1Ω
Inductance:4.2mH±20%(1KHz)
Insulation Class:B(130°C/266°F)

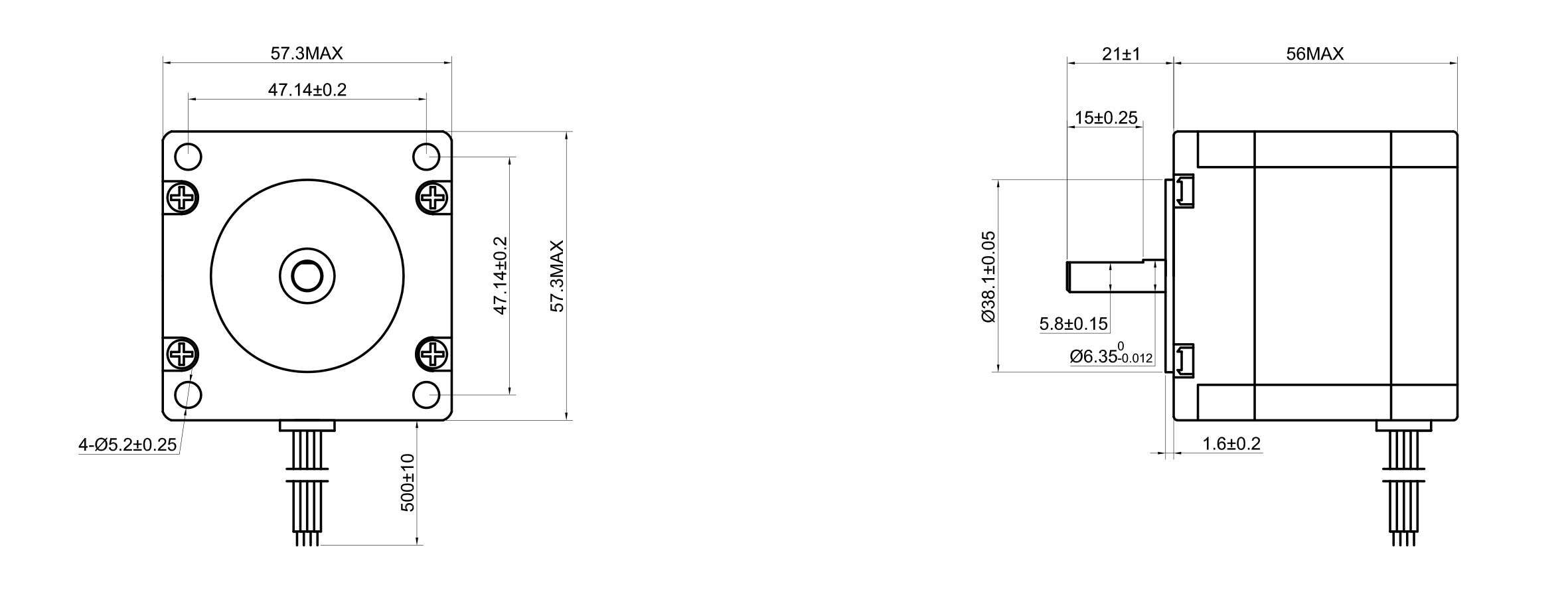

✅Mechanical Specs
Frame Size:57x57mm
Motor Length:56mm
Shaft Type:D-cut
Shaft Diameter:6.35mm
Shaft Length:21mm
D-cut Length:15mm(if applicable)
Lead Wires:4
Lead Length:500mm

✅Ideal For
High-precision 3D printers
Compact CNC systems
Camera sliders & pan-tilt heads
Automated optical systems
Robotics with tight movement tolerances

✅Why Pick This Motor?
If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
