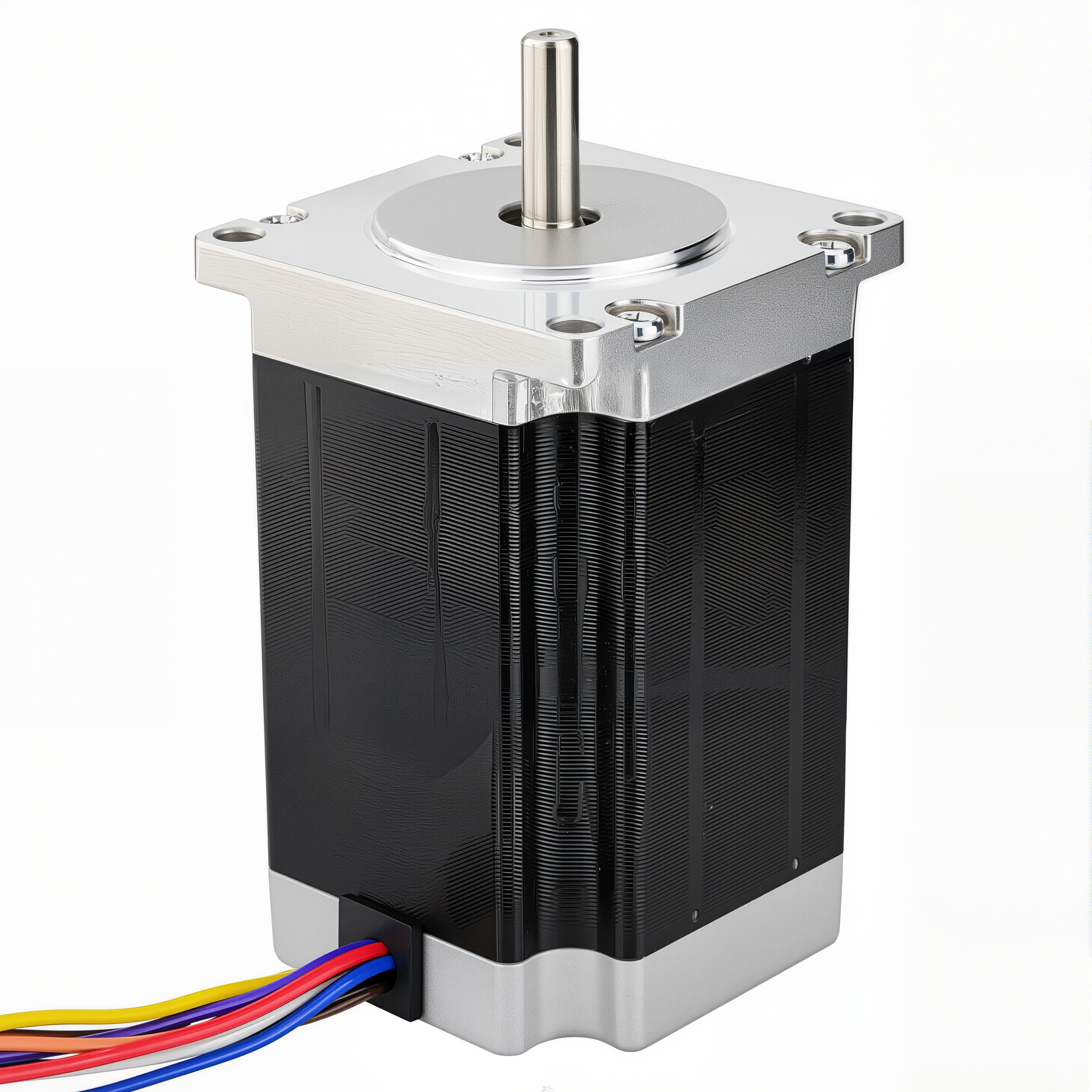

23 Single Shaft Bipolar/Unipolar Stepper Motor,1.8°Step,283N·cm Torque,5.66A Current,84mm Body,8-Wire

Precision NEMA 23 Stepper Motor–1.8 Step Angle,2.0N·m Torque(Unipolar),2.83N·m Torque(Bipolar),5.66A,84mm Body,8 Wires

This NEMA 23 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 2.0N·m(283oz.in)of holding torque(Unipolar),2.83N·m(400oz.in)of holding torque(Bipolar)at 5.66A rated current per phase.

With a body length of 84mm and a D-cut shaft design, this 8-wire bipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs
Model Type:23HB33-4008S
Motor Type:Bipolar/Unipolar Stepper
Step Angle:1.8 per step
Rated Current/Phase(Bipolar Serial):2.83A
Rated Current/Phase(Bipolar Parallel):5.66A
Rated Current/Phase(Unipolar):4.0A
Holding Torque(Bipolar):2.83N·cm(400oz.in)
Holding Torque(Unipolar):2.0N·cm(283oz.in)
Phase Resistance(Bipolar Serial):1.6Ω
Phase Resistance(Bipolar Parallel):0.4Ω
Phase Resistance(Unipolar):0.8Ω
Inductance(Bipolar Serial):7.2mH±20%(1KHz)
Inductance(Bipolar Parallel):1.8mH±20%(1KHz)
Inductance(Unipolar):1.8mH±20%(1KHz)
Insulation Class:B(130°C/266°F)

✅Mechanical Specs
Frame Size:57x57mm
Motor Length:84mm
Shaft Type:D-cut
Shaft Diameter:6.35mm
Shaft Length:21mm
D-cut Length:15mm(if applicable)
Lead Wires:8
Lead Length:500mm

✅Ideal For
High-precision 3D printers
Compact CNC systems
Camera sliders & pan-tilt heads
Automated optical systems
Robotics with tight movement tolerances

✅Why Pick This Motor?
If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
