17 Single Shaft Bipolar Stepper Motor,0.9°Step,11N·cm Torque,1.2A Current,22mm Body,4-Wire

Precision NEMA 17 Stepper Motor–0.9 Step Angle,11N·cm Torque,1.2A,22mm Body,4 Wires

This NEMA 17 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 0.9 step angle,it delivers 11N·cm(15.58oz.in)of holding torque at 1.2A rated current per phase.

With a body length of 22mm and a Round shaft design, this 4-wire bipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs
Model Type:17H908-1204S
Motor Type:Bipolar Stepper
Step Angle:0.9 per step
Rated Current/Phase:1.2A
Holding Torque:11N·cm(15.58oz.in)
Phase Resistance:3Ω
Inductance:3mH±20%(1KHz)
Insulation Class:B(130°C/266°F)

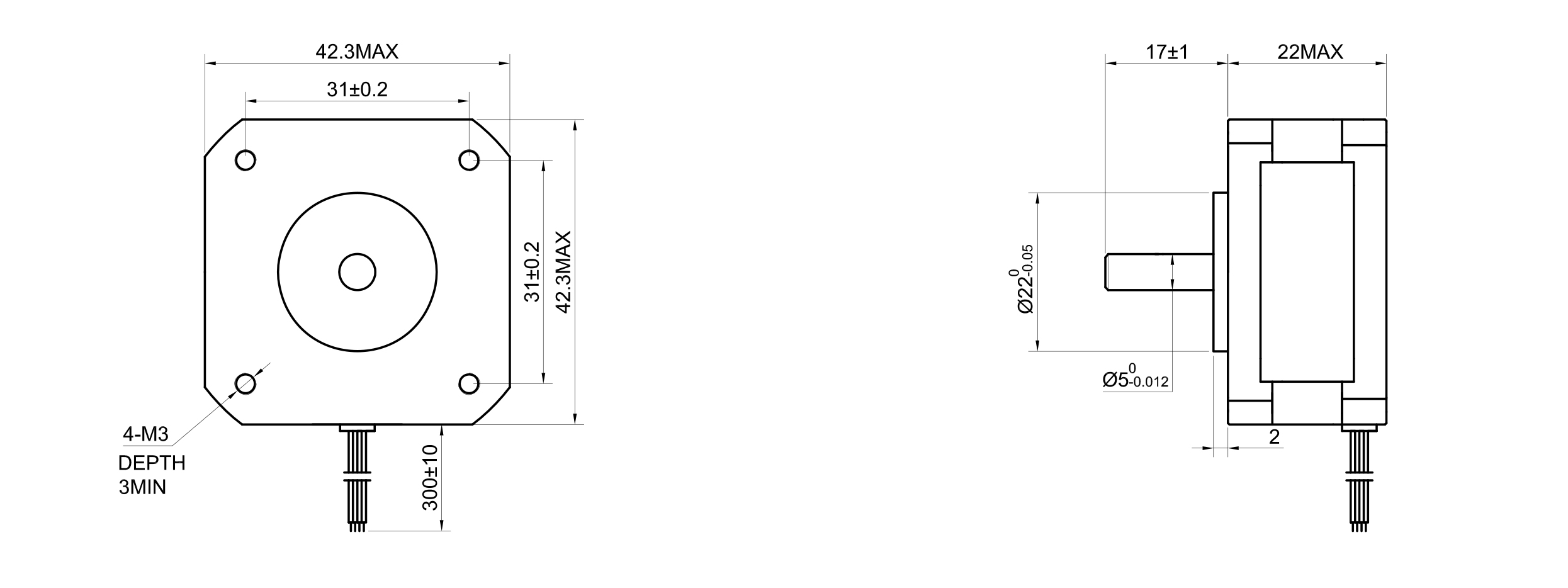

✅Mechanical Specs
Frame Size:42x42mm
Motor Length:22mm
Shaft Type:Round
Shaft Diameter:5mm
Shaft Length:17mm
Lead Wires:4
Lead Length:300mm

✅Ideal For
High-precision 3D printers
Compact CNC systems
Camera sliders & pan-tilt heads
Automated optical systems
Robotics with tight movement tolerances

✅Why Pick This Motor?
If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
