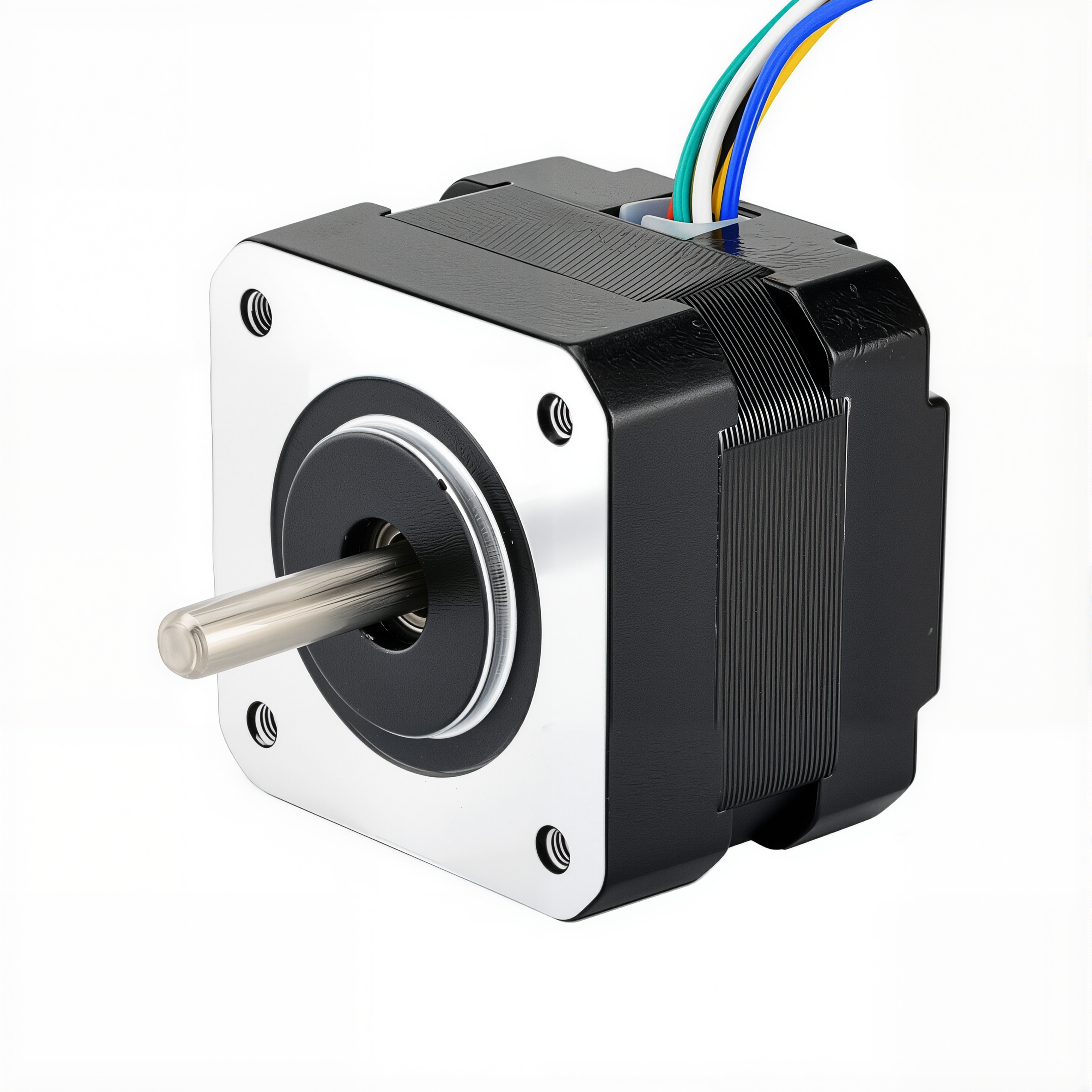

17 Single Shaft Unipolar Stepper Motor,1.8°Step,16N·cm Torque,0.95A Current,33mm Body,6-Wire

Precision NEMA 17 Stepper Motor–1.8 Step Angle,16N·cm Torque,0.95A,33mm Body,6 Wires

Overview

This NEMA 17 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 16N·cm(22.66oz.in)of holding torque at 0.95A rated current per phase.

With a body length of 33mm and a Round shaft design, this 6-wire Unipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs

Model Type:17HB13-0956S

Motor Type:Unipolar Stepper

Step Angle:1.8 per step

Rated Current/Phase:0.95A

Holding Torque:16N·cm(22.66oz.in)

Phase Resistance:4.2Ω

Inductance:2.5mH±20%(1KHz)

Insulation Class:B(130°C/266°F)

✅Mechanical Specs

Frame Size:42x42x33mm

Motor Length:33mm

Shaft Type:Round

Shaft Diameter:5mm

Shaft Length:20mm

Lead Wires:6

Lead Length:400mm

✅Ideal For

High-precision 3D printers

Compact CNC systems

Camera sliders & pan-tilt heads

Automated optical systems

Robotics with tight movement tolerances

✅Why Pick This Motor?

If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
