23 Single Shaft Bipolar Stepper Motor,1.8°Step,189N·cm Torque,2.8A Current,76mm Body,4_Wire

Precision NEMA 23 Stepper Motor–1.8 Step Angle,189N·cm Torque,2.8A,76mm Body,4 Wires

Overview

This NEMA 23 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 189N·cm(267.73oz.in)of holding torque at 2.8A rated current per phase.

With a body length of 76mm and a D-cut shaft design, this 4-wire bipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs

Model Type:23HB30-2804S1

Motor Type:Bipolar Stepper

Step Angle:1.8 per step

Rated Current/Phase:2.8A

Holding Torque:189N·cm(267.73oz.in)

Phase Resistance:1.13Ω

Inductance:5.4mH±20%(1KHz)

Insulation Class:B(130°C/266°F)

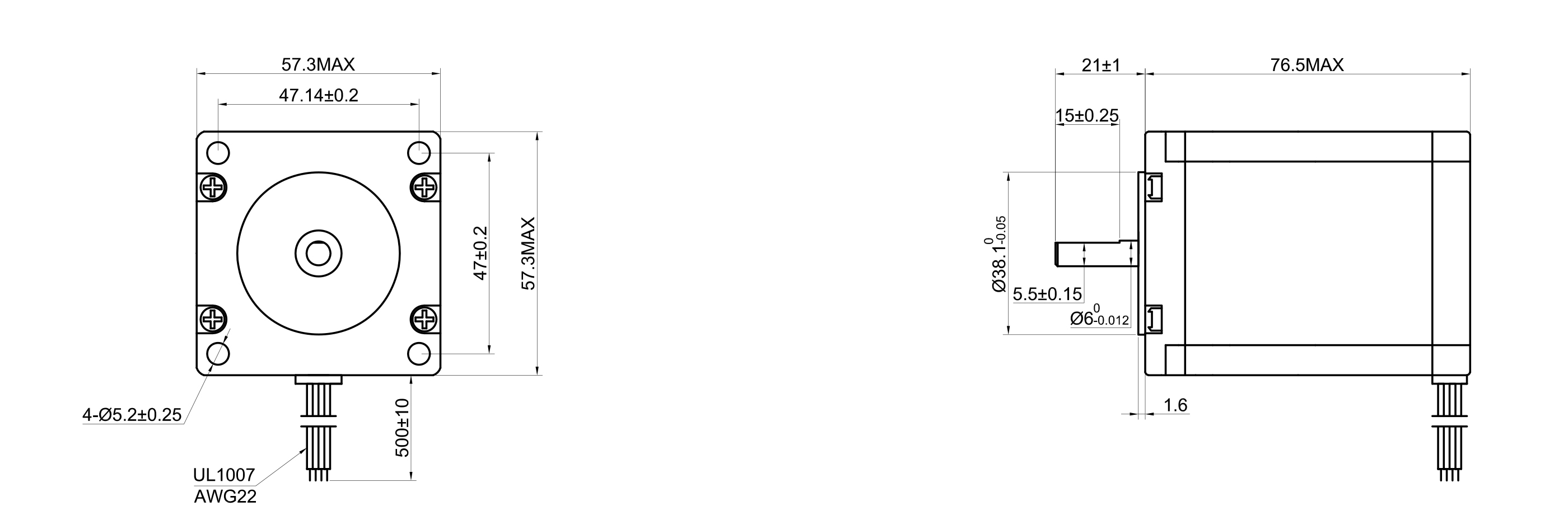

✅Mechanical Specs

Frame Size:57x57x76mm

Motor Length:76mm

Shaft Type:D-cut

Shaft Diameter:6mm

Shaft Length:21mm

D-cut Length:15mm(if applicable)

Lead Wires:4

Cable Length:500mm

✅Ideal For

High-precision 3D printers

Compact CNC systems

Camera sliders & pan-tilt heads

Automated optical systems

Robotics with tight movement tolerances

✅Why Pick This Motor?

If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
