23 Single Shaft Unipolar Stepper Motor,1.8°Step,90N·cm Torque,1A Current,56mm Body,6_Wire

Precision NEMA 23 Stepper Motor–1.8 Step Angle,90N·cm Torque,1A,56mm Body,6 Wires

Overview

This NEMA 23 stepper motor is designed for reliable,high-accuracy performance in compact form factors.Featuring a 1.8 step angle,it delivers 90N·cm(127.5oz.in)of holding torque at 1A rated current per phase.

With a body length of 56mm and a D-cut shaft design, this 6-wire Unipolar motor is ideal for precision applications like High-precision 3D printers, Compact CNC systems, and Camera sliders & pan-tilt heads.

✅Key Electrical Specs

Model Type:23HB22-1006S

Motor Type:Unipolar Stepper

Step Angle:1.8 per step

Rated Current/Phase:1A

Holding Torque:90N·cm(127.5oz.in)

Phase Resistance:7.4Ω

Inductance:10mH±20%(1KHz)

Insulation Class:B(130°C/266°F)

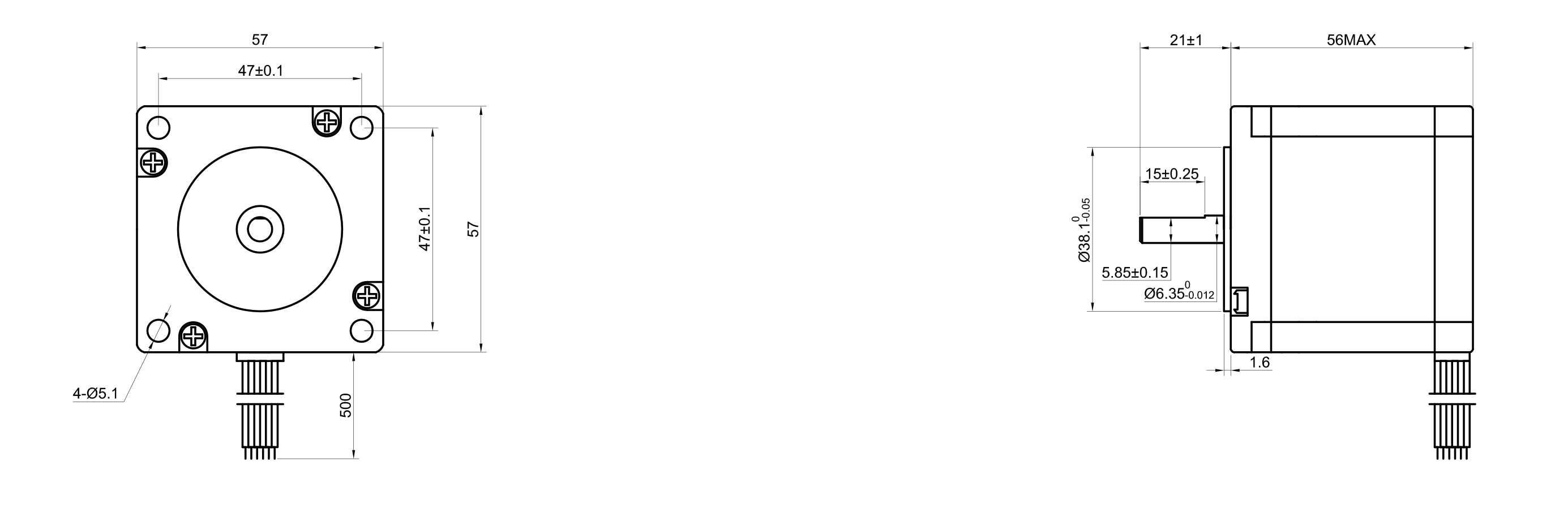

✅Mechanical Specs

Frame Size:57x57x56mm

Motor Length:56mm

Shaft Type:D-cut

Shaft Diameter:6.35mm

Shaft Length:21mm

D-cut Length:15mm(if applicable)

Lead Wires:6

Lead Length:500mm

✅Ideal For

High-precision 3D printers

Compact CNC systems

Camera sliders & pan-tilt heads

Automated optical systems

Robotics with tight movement tolerances

✅Why Pick This Motor?

If your project requires accurate,repeatable motion in a compact motor,this stepper is built for the job.With dependable torque output and high-resolution stepping,it offers solid performance across many motion control platforms.
